NCP1014AP100

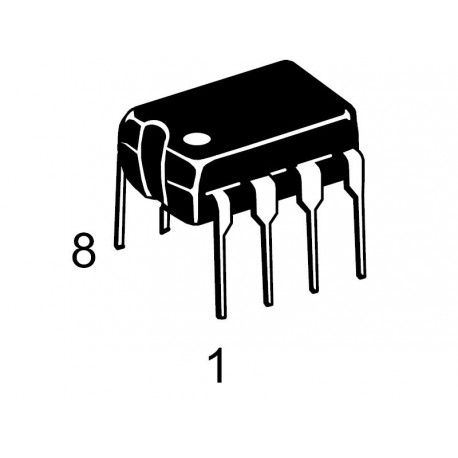

NCP1014AP100 (P1014AP10) - PDIP-7
Self-Supplied Monolithic
Switcher for Low Standby Power Offline SMPS

Features

• Built−in 700 V MOSFET with Typical RDSon of 11ohm
• Large Creepage Distance Between High−Voltage Pins
• Current−Mode Fixed Frequency Operation: 100 kHz
• Skip−Cycle Operation at Low Peak Currents Only: No Acoustic Noise!
• Dynamic Self−Supply, No Need for an Auxiliary Winding
• Internal 1.0 ms Soft−Start
• Latched Overvoltage Protection with Auxiliary Winding Operation
• Frequency Jittering for Better EMI Signature
• Auto−Recovery Internal Output Short−Circuit Protection
• Below 100 mW Standby Power if Auxiliary Winding is Used
• Internal Temperature Shutdown
• Direct Optocoupler Connection
• SPICE Models Available for TRANsient Analysis

Typical Applications

• Low Power AC/DC Adapters for Chargers
• Auxiliary Power Supplies (USB, Appliances, TVs, etc.)
